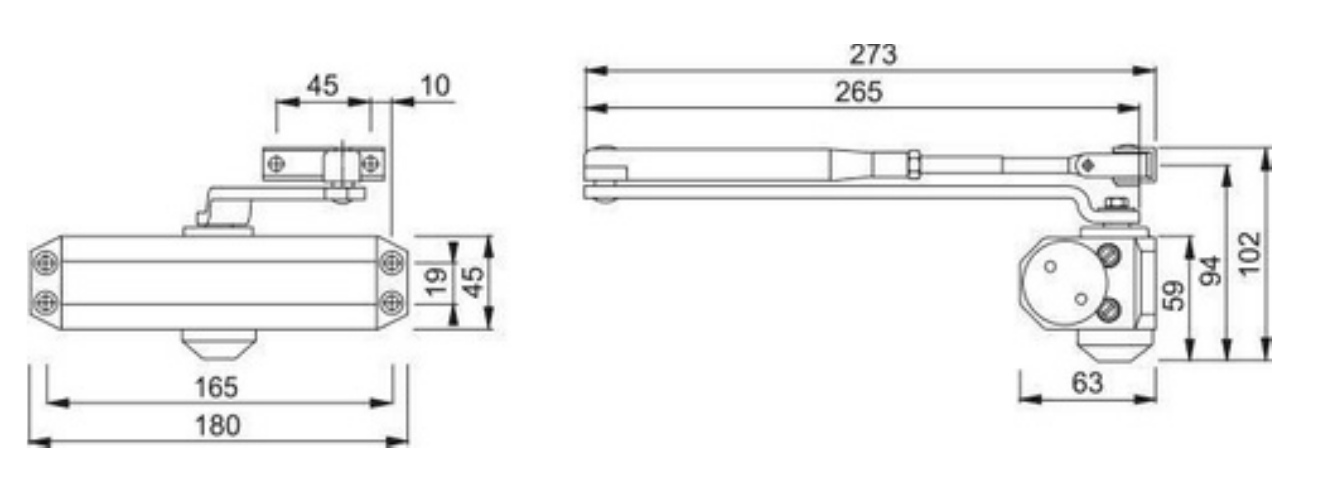

TECHNICAL SPECIFICATION
-
CE
Certfire
-
S800
Heavy duty
EN2-5 by spring
Extruded body
Rack & Pinion mechanism with matching flat form armset.
-
Universal application – suitable for fitting on pull or push face of doors.
Common features:
Projecting arm
Parallel arm bracket included
Rack & pinion mechanism with matching flat form armset
Meets the opening force requirements of ADM and BS8300.(836mm minimum door width at EN3).
-
Antique Brass
Polished Brass
Silver
Satin Stainless Steel

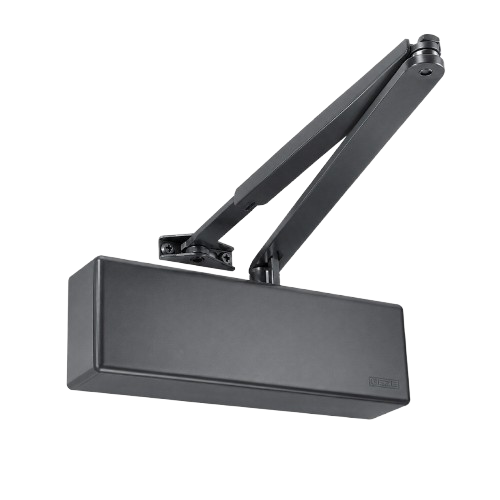

RAL Colours
Sizes
Fixed Power Size 3
Suitable for door weights up to 100kg & width up to 950mm.
Finishes

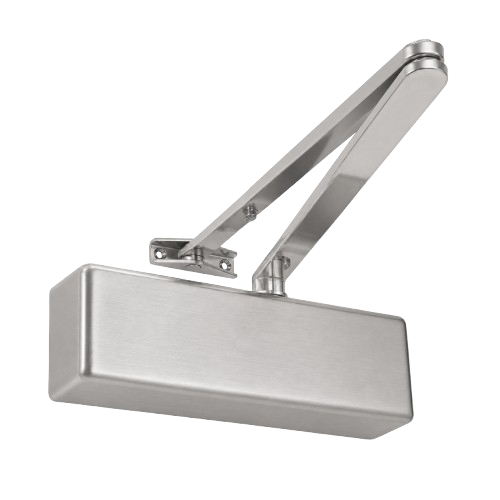

Silver

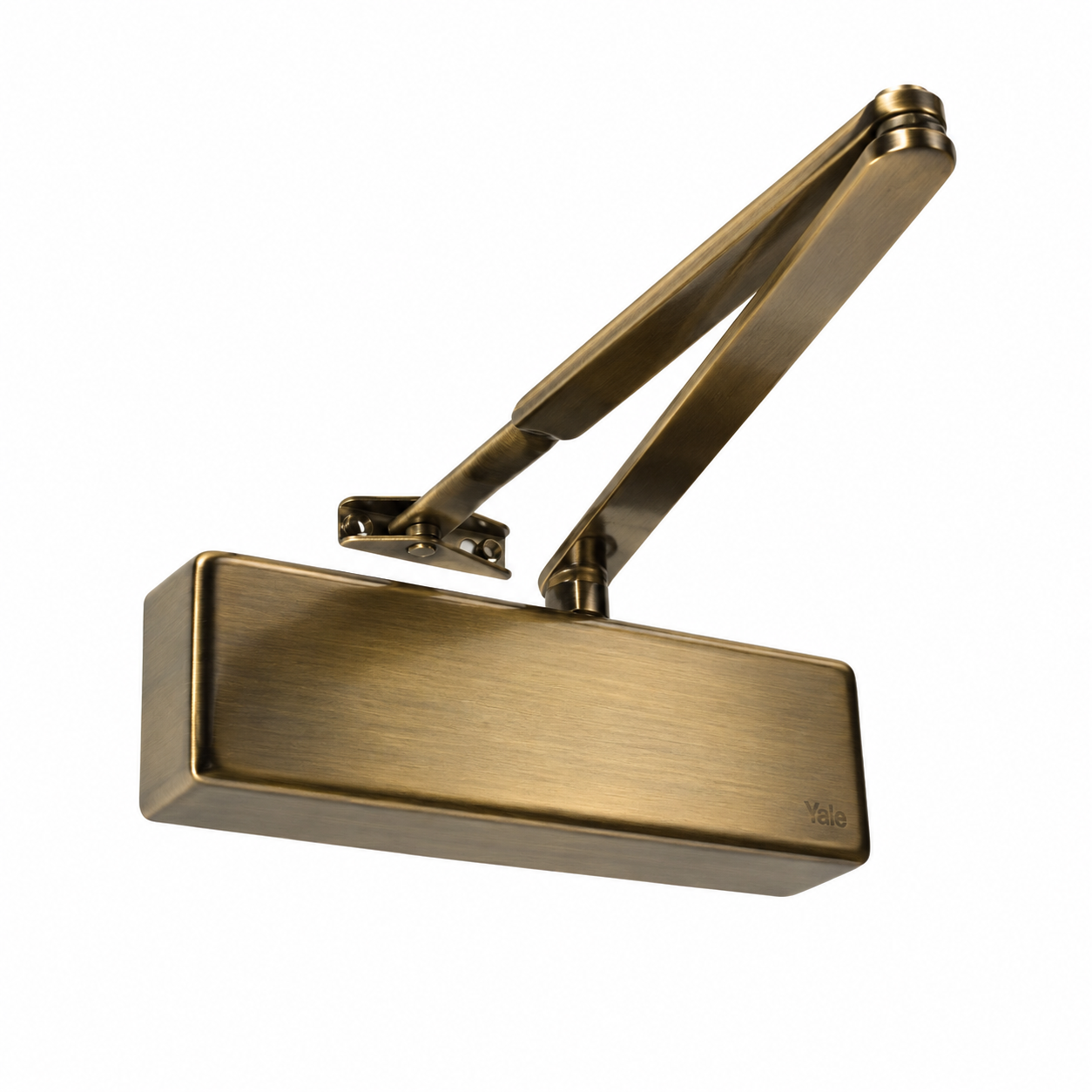

Antique Brass

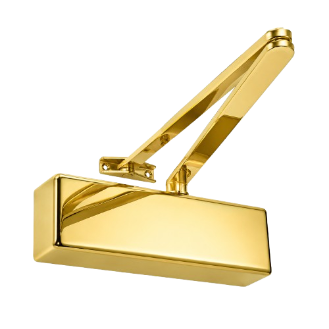

Polished Brass
SPECIFICATION
RAL Colours

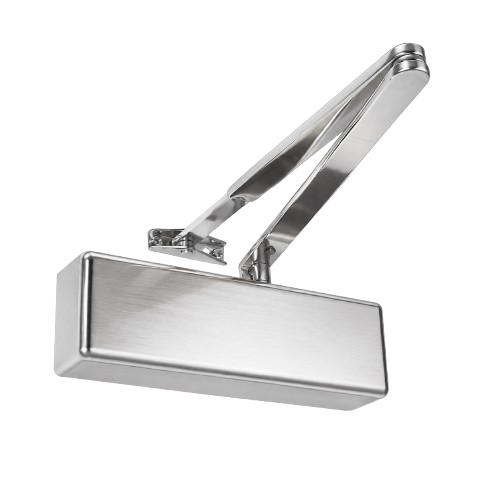

Satin Stainless Steel
BENEFITS
Overhead door closing device
Power size: EN 3
Function: closing, latching
Cover: none
Arm application: Fig1/Fig6 (bracket available separately) and Fig 61 fixing positions
Successfully type tested for conformity to all requirements of BS EN 1154:1997
Tested: door width 950mm, door weight 60kg
Classification (Fig 1/Fig 61): 4 | 8 | 3 | 1* | 1 | 3
Classification (Fig 6): 3 | 8 | 3 | 1* | 1 | 3
Fire tested to BS EN 1634-1: suitable for 30, 60 and 120 minute timber fire doors
| Product ref: | AR450-SE |
| Corrosion resistance | 3 |
| Type | mechanism only |
| Door type | wooden door |
| Tested door width | 950mm |
| Tested door weight | 60kg |
| Arm application | figure 1 and 61 |
| Mechanism function | Fixed power; closing latching speed |
| Mechanism type | Rack and pinion |
| Fixings | Timber door |
| Power size | 3 |
| Opening angle | max. 180° opening |
| Arm type | Scissor arm, detachable joint, screw adjustable |
| Finish | SE Silver Enamel |
| Arm finish | SE Silver Enamel |
| Packing unit | 1 |
| Outer carton | 8 |
