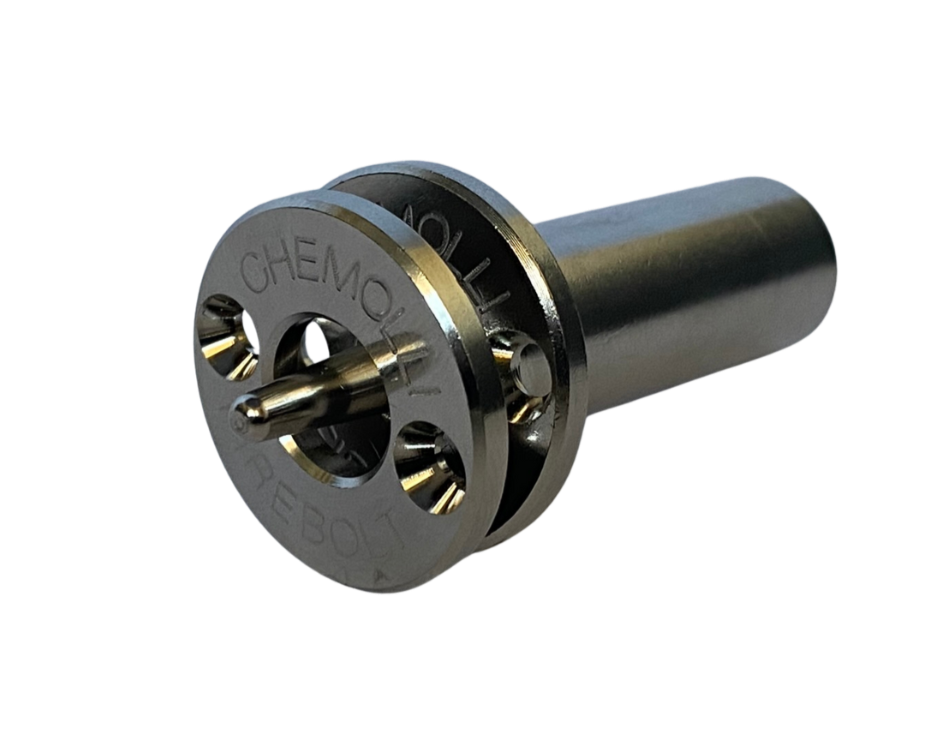

A2.0 fire bolt

£0.00

Secures doors at high temperatures to prevent deflection

Fire Bolts deliver critical protection to prevent fire doors from warping during a fire. Designed to activate under intense heat, this spring-loaded bolt engages automatically, locking the door and frame together to maintain a secure, sealed barrier against flames and smoke.

Size:

Secures doors at high temperatures to prevent deflection

Fire Bolts deliver critical protection to prevent fire doors from warping during a fire. Designed to activate under intense heat, this spring-loaded bolt engages automatically, locking the door and frame together to maintain a secure, sealed barrier against flames and smoke.

Technical specification

    • UL Listed USA (UL10C and UL10B) and Canada (ULC-S104)

    • Included in successful fire tests to EN 1634-1 in both steel and timber doors for varying durations

  • Single piece galvanised metal cylindrical body, machined from solid, dimensions 14x42mm (standard)/52mm (long), fixing flange 25x3 mm.

    • Conical metal sealing pin, variable diameter from 5 to 3 mm

    • Standard length 17.5 mm, stroke 16 mm.

    • Long length 27.5mm, stroke 23mm.

    • Internal compression spring with 25 N thrust, operating temperature up to 540 °C, heating element to be installed if required.

    • Weight of device, complete with strike: 51 grams.

    • Heating element (to be installed if required) with ignition temperature of 110-150°

    • Suitable for single and pairs of timber and steel doors

  • Standard Length (timber doors):

    42 mm, stroke 16 mm

    Long Length (steel doors):

    52 mm, stroke 23 mm

  • A2.0 Data Sheet

    A2.0 Long Data Sheet




Why choose the Fire Bolt?

  • Automatic fire activation. The Fire Bolt engages under heat, without the need for power or manual intervention

  • Prevents door and/or frame deflection, ensuring critical fire and smoke seal is maintained

  • Flexible installation. The Fire Bolt fits horizontally or vertically based on deflection rise

  • Suitable for single or double timber and steel fire doors

  • Available in standard (timber doors) and long (steel doors) length




How it works

Engineered for performance, trusted in emergencies

In a fire, doors and frames can deflect or warp due to heat, compromising the seal and allowing smoke or flames to pass through. Door deflection is a major risk to life safety and fire containment. The A2.0 Fire Bolt mitigates this risk by keeping the door and frame firmly connected, preserving the door’s integrity when it matters most. The mechanism is automatically activated by heat which means it can be trusted to work, without power or manual intervention.

Sizes

At the heart of the A2.0 is a precision-engineered thermo-fuse element that activates at just 110–150 °C, ensuring rapid and reliable performance when exposed to fire conditions.

Please choose the size to suit your requirements:

Standard Length (timber doors): 42 mm, stroke 16 mm
Long Length (steel doors): 52 mm, stroke 23 mm
