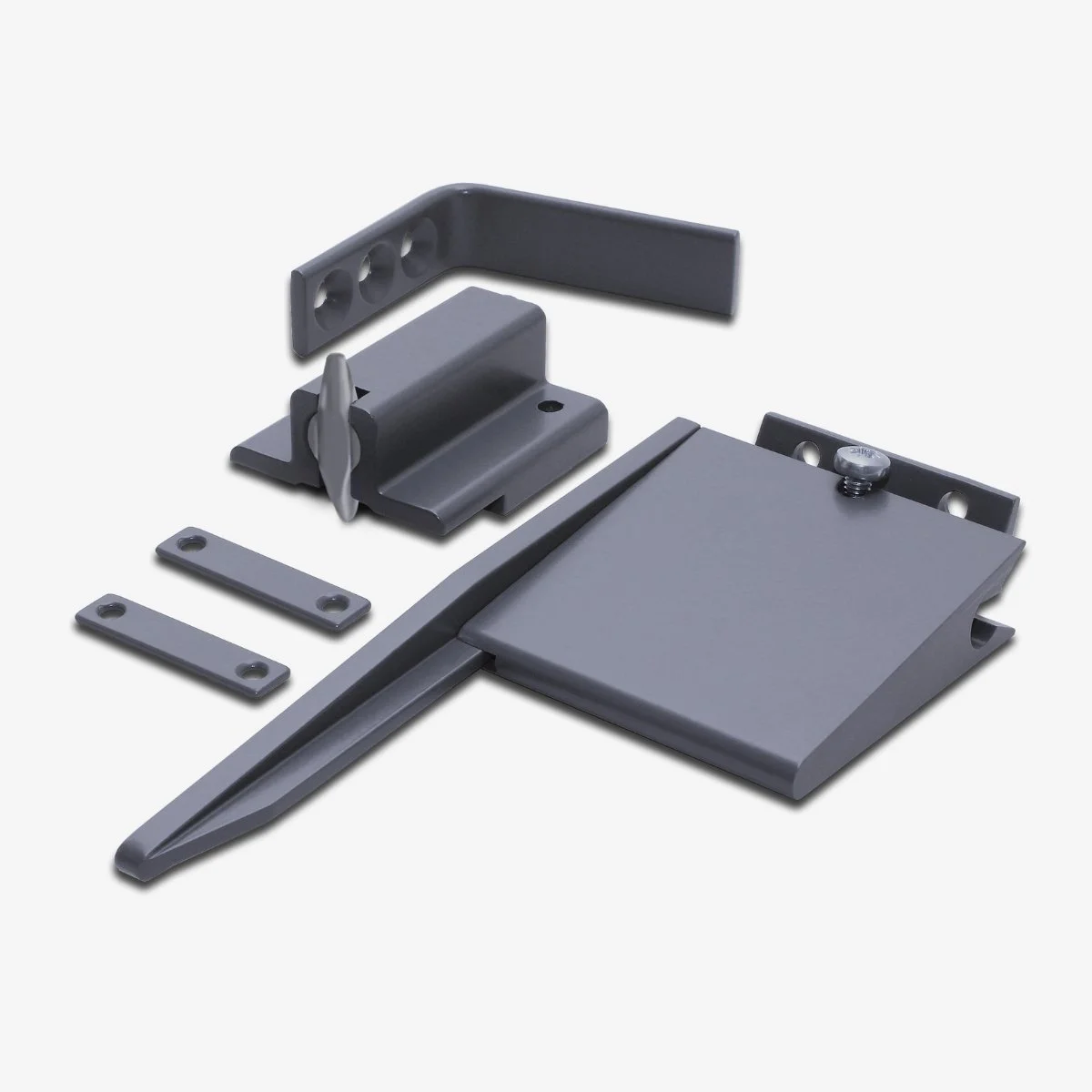

Image 1 of 8

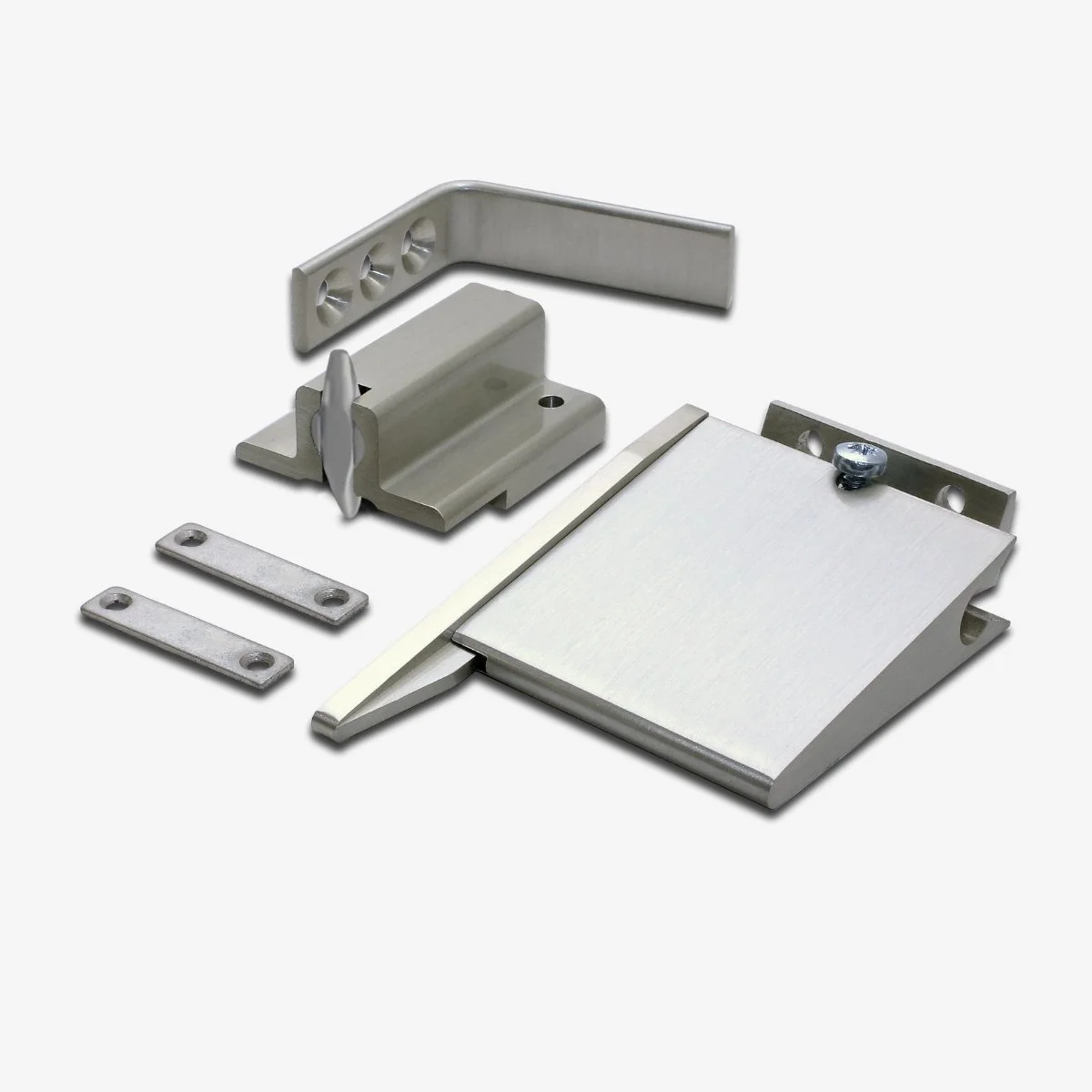

Image 2 of 8

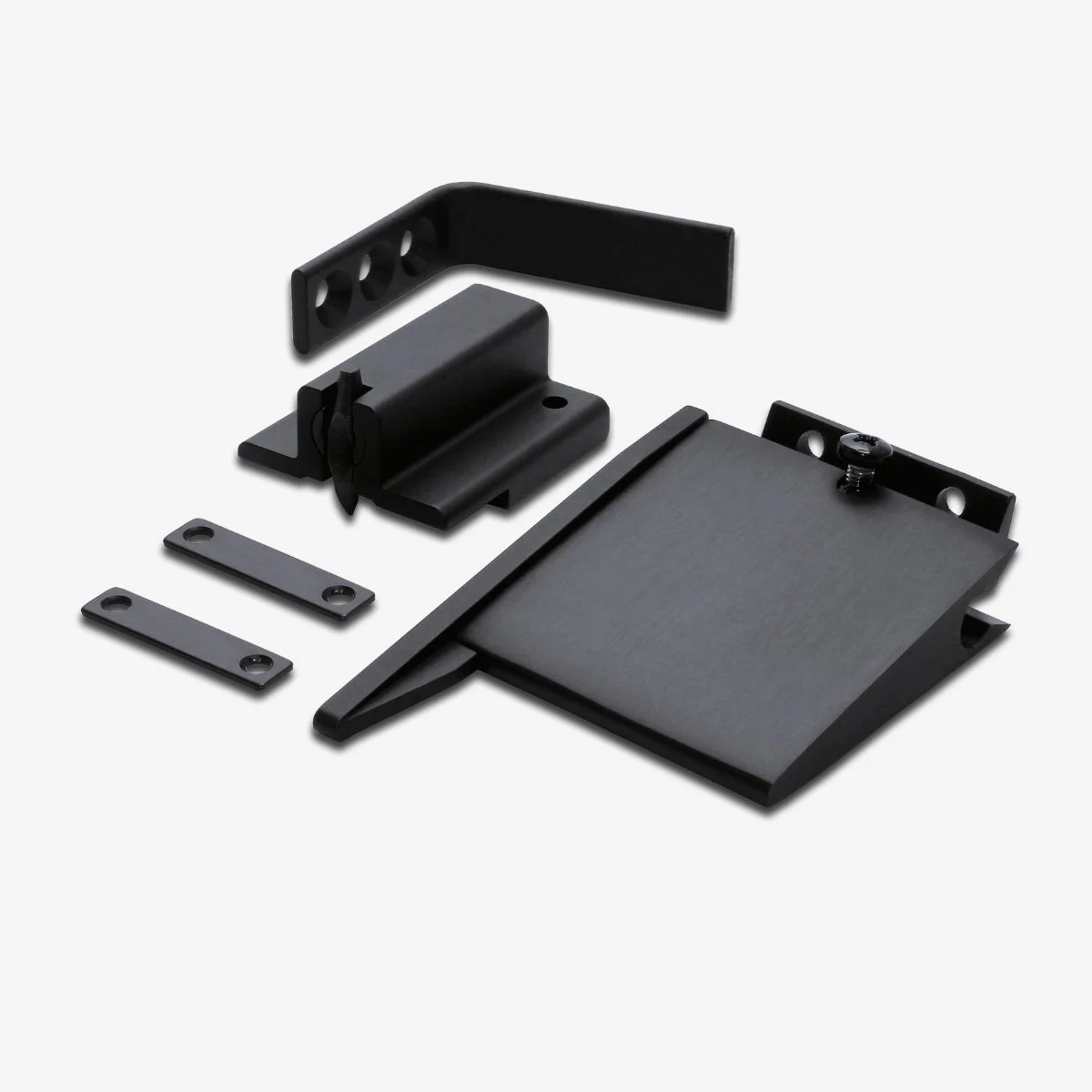

Image 3 of 8

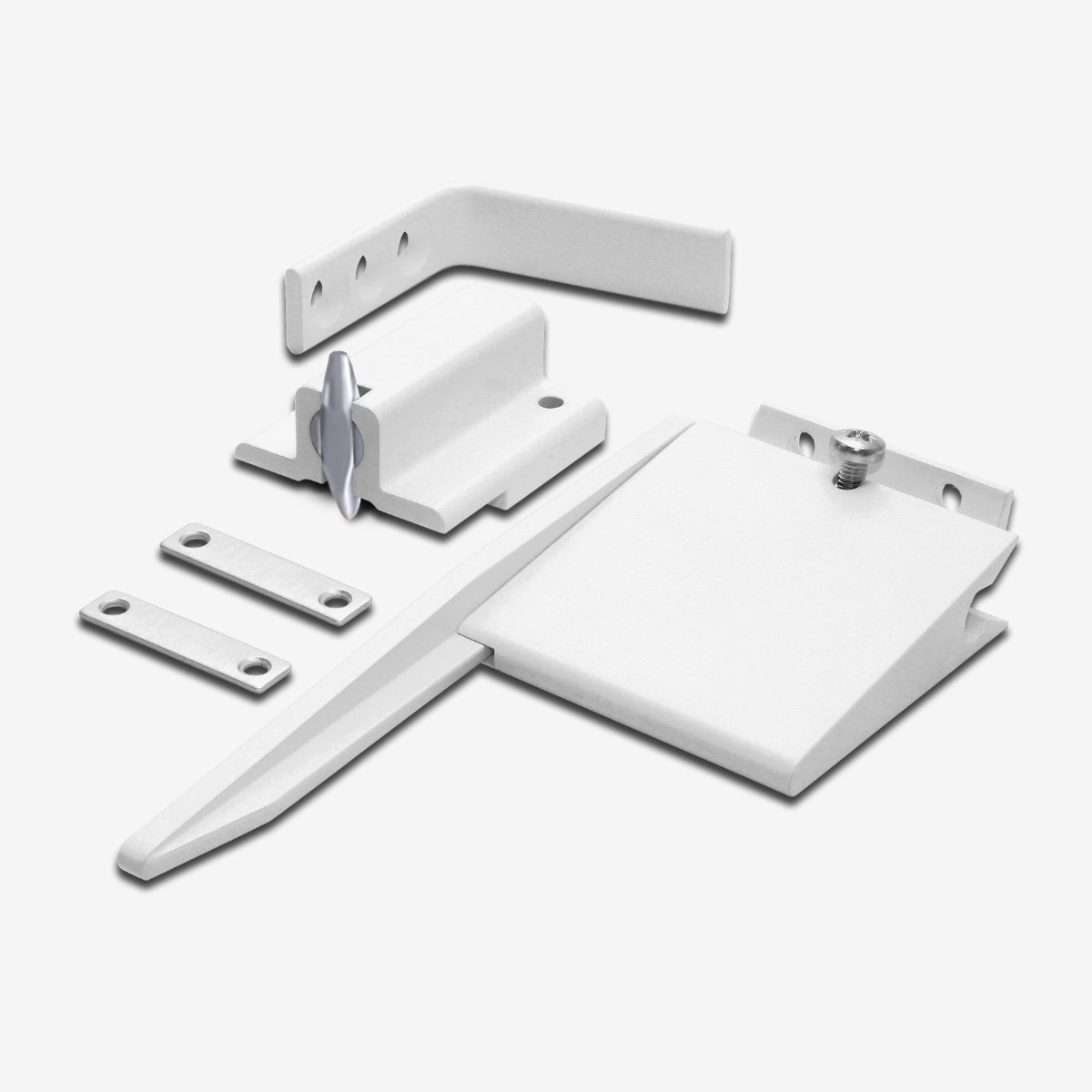

Image 4 of 8

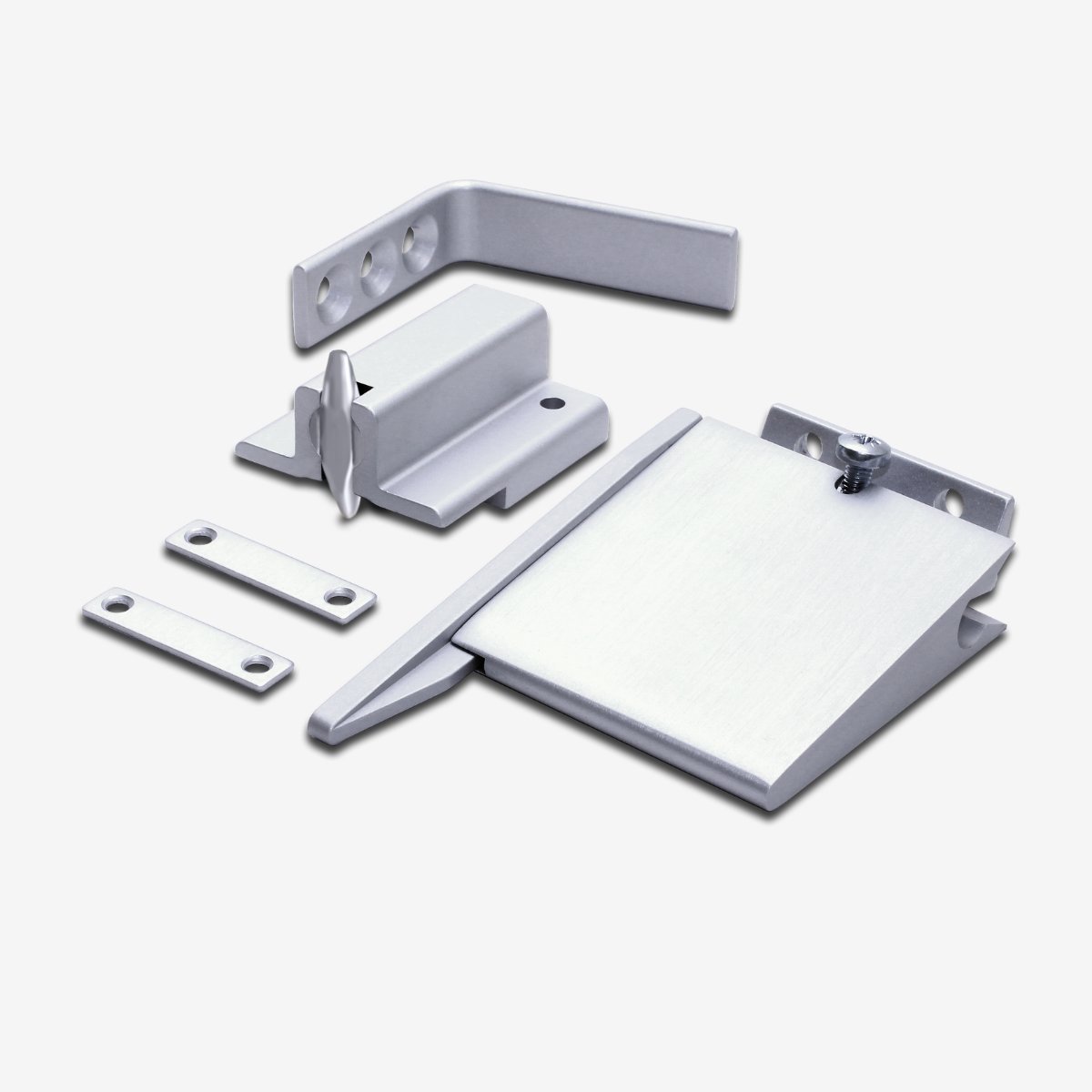

Image 5 of 8

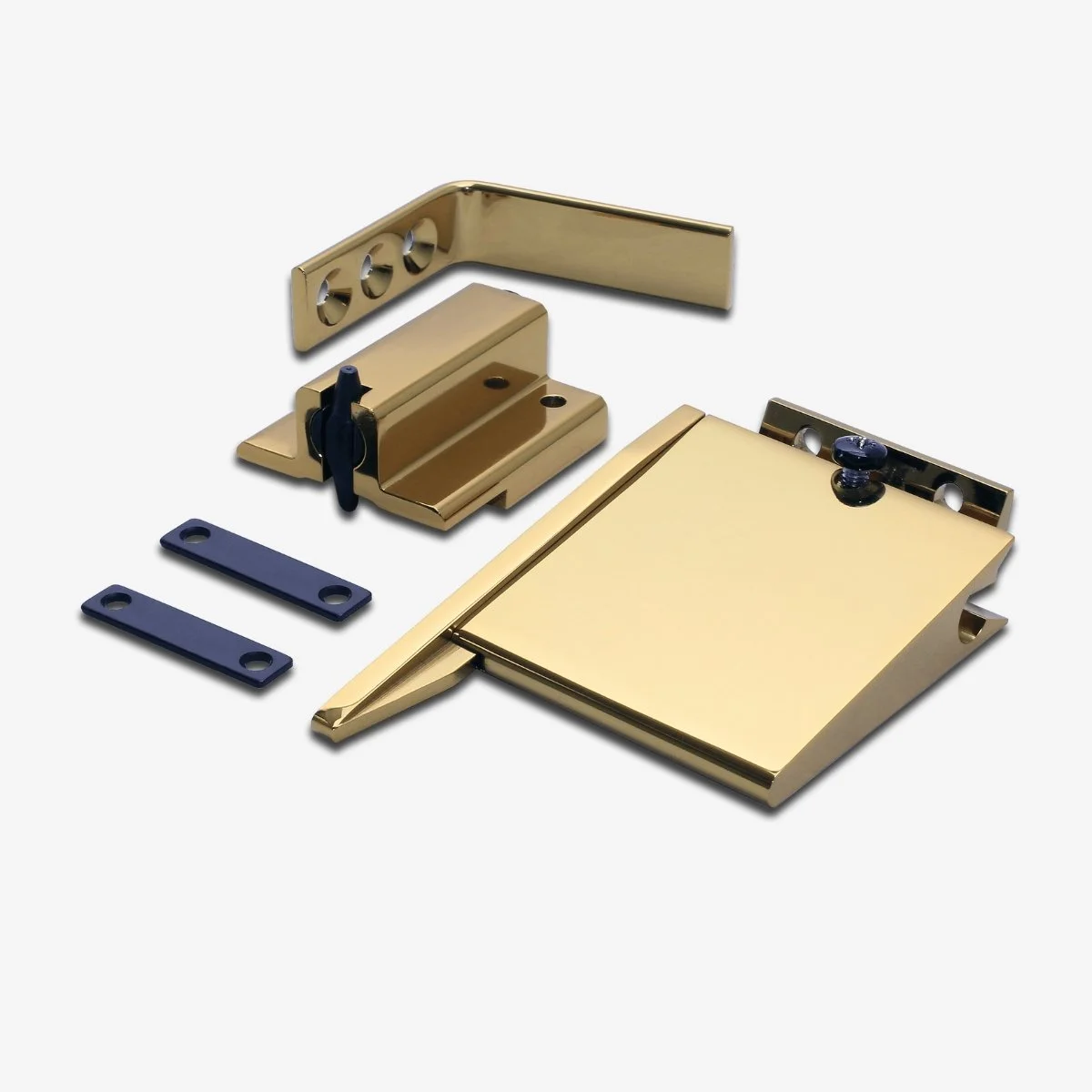

Image 6 of 8

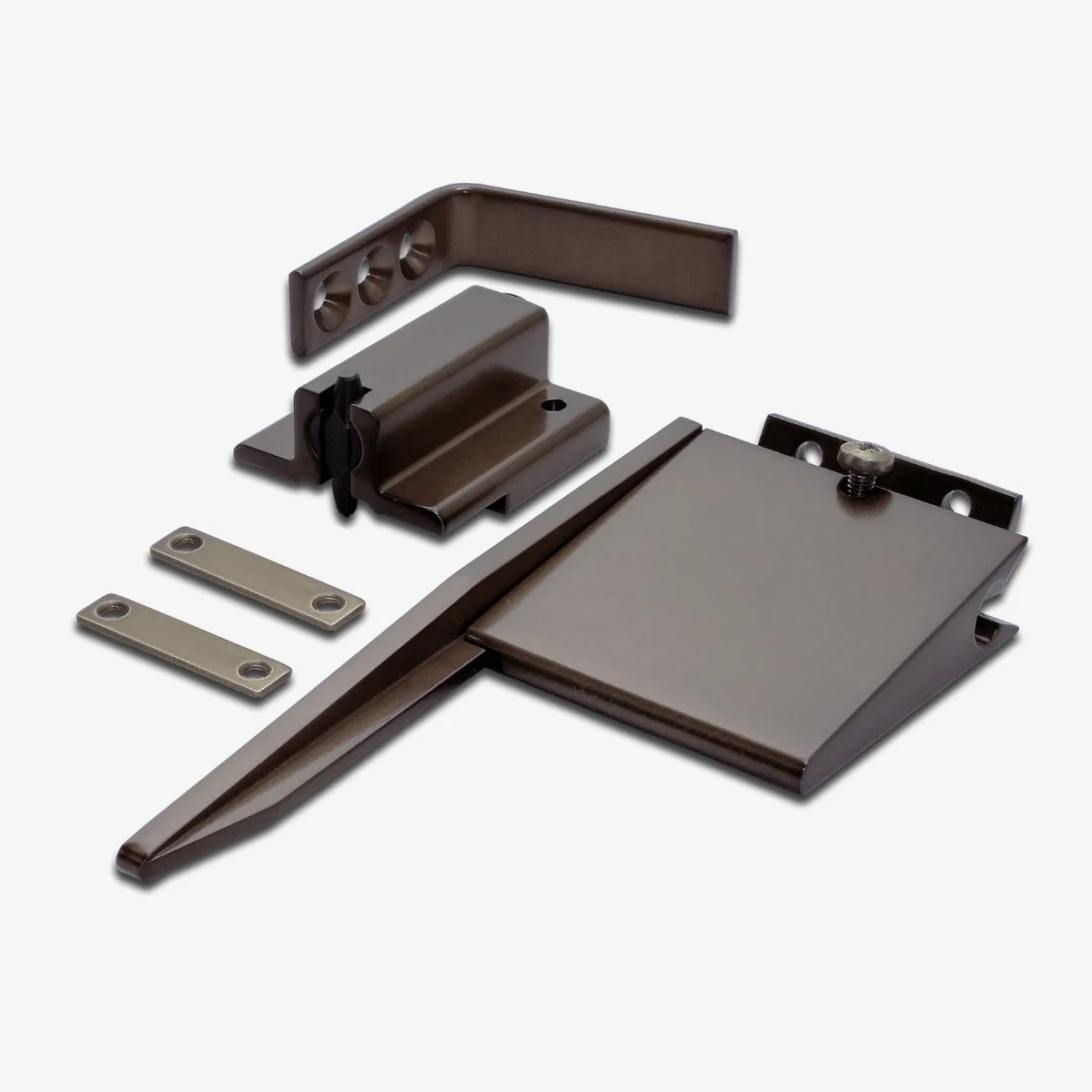

Image 7 of 8

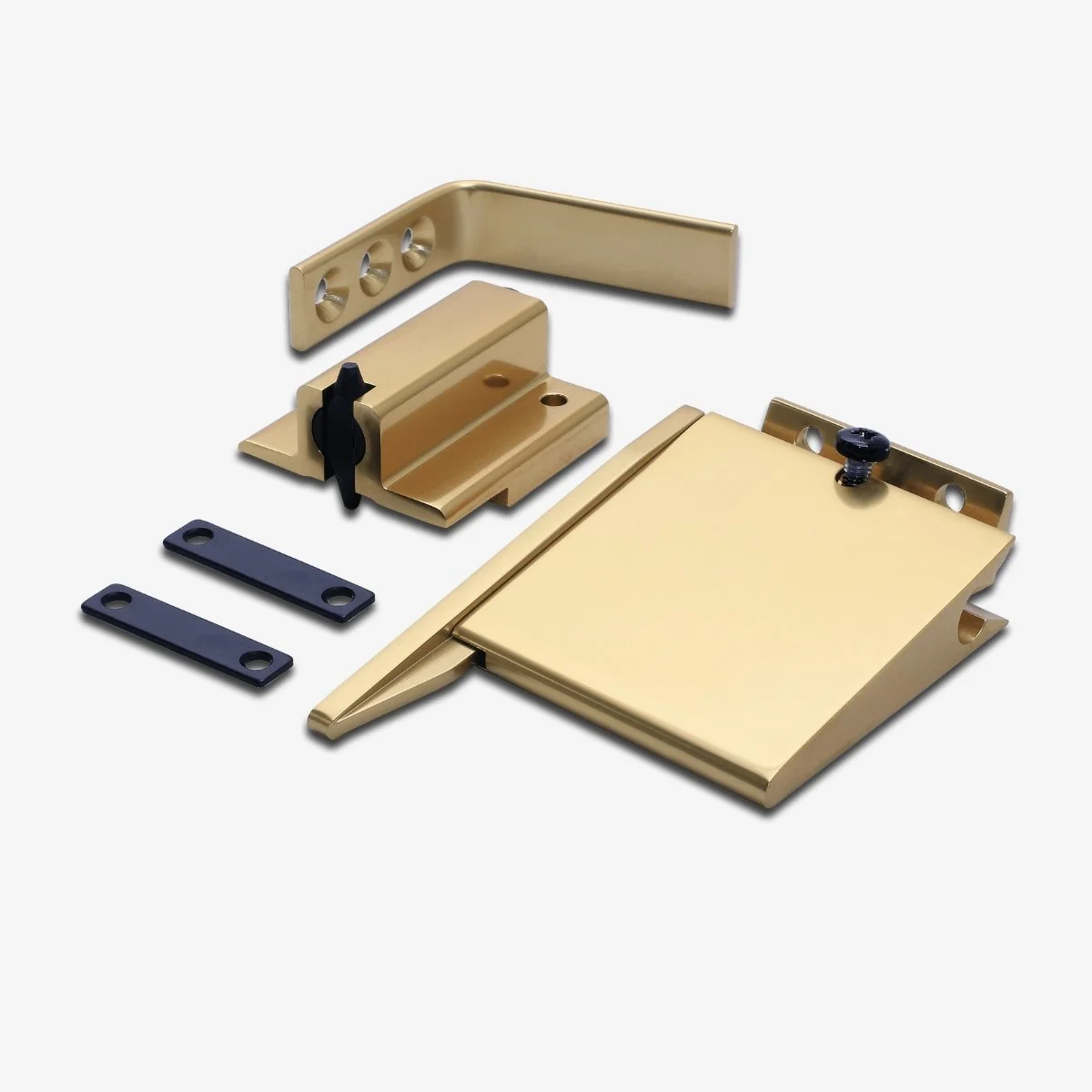

Image 8 of 8
technical Specification
-
UL/ANSI Certification Number: R3796
European Standard: BS EN 1158:1997/A1:2002/AC:2006
CE Mark: 2812-CPR-AF004
UKCA Number: 1121-CPR-UK-AF7810
EPD Declaration Number: EPD-ARG-20230550-IBG1-EN
-
Timber/Mineral Door Assemblies – Full range tested to BS EN 1634-1:2014 for up to 120 minutes integrity and insulation performance.
Steel Door Assemblies - Full range tested to BS EN 1634-1:2014 for up to 240 minutes integrity (and where appropriate insulation performance.)
Bidirectional - Can be mounted either side, regardless of exposure direction.
-
Wedge body with 102mm arm (extended arms available for wider, thicker doors)
Rebate catch (extended rebate available for astragal and larger rebate)
3 hole angle
Impact plates and fixings
Installation instructions
-
Fire and non-fire regulated
Timber and Metal
Rebated
Doors with an astragal (metal strip)
Escape doors with a vertical rod device and horizontal rim exit device
Flush doors with a mortice lock/latch
Flush doors with automatic bolt
-
Please click on the below links to access the PDF version of the document you require.
Why choose the MK2?
Globally Certified – CE, UKCA, UL, ANSI
Easy Installation & Low Maintenance
British Made & Manufactured
Available in Various Finishes
Durable & Long-Lasting Performance
Sleek, Lightweight & Discreet Design
Fast & Efficient International Delivery
Sustainable Product & Packaging
Retrofittable for Easy Upgrades
How it works
Ensuring double doors close correctly, every time:

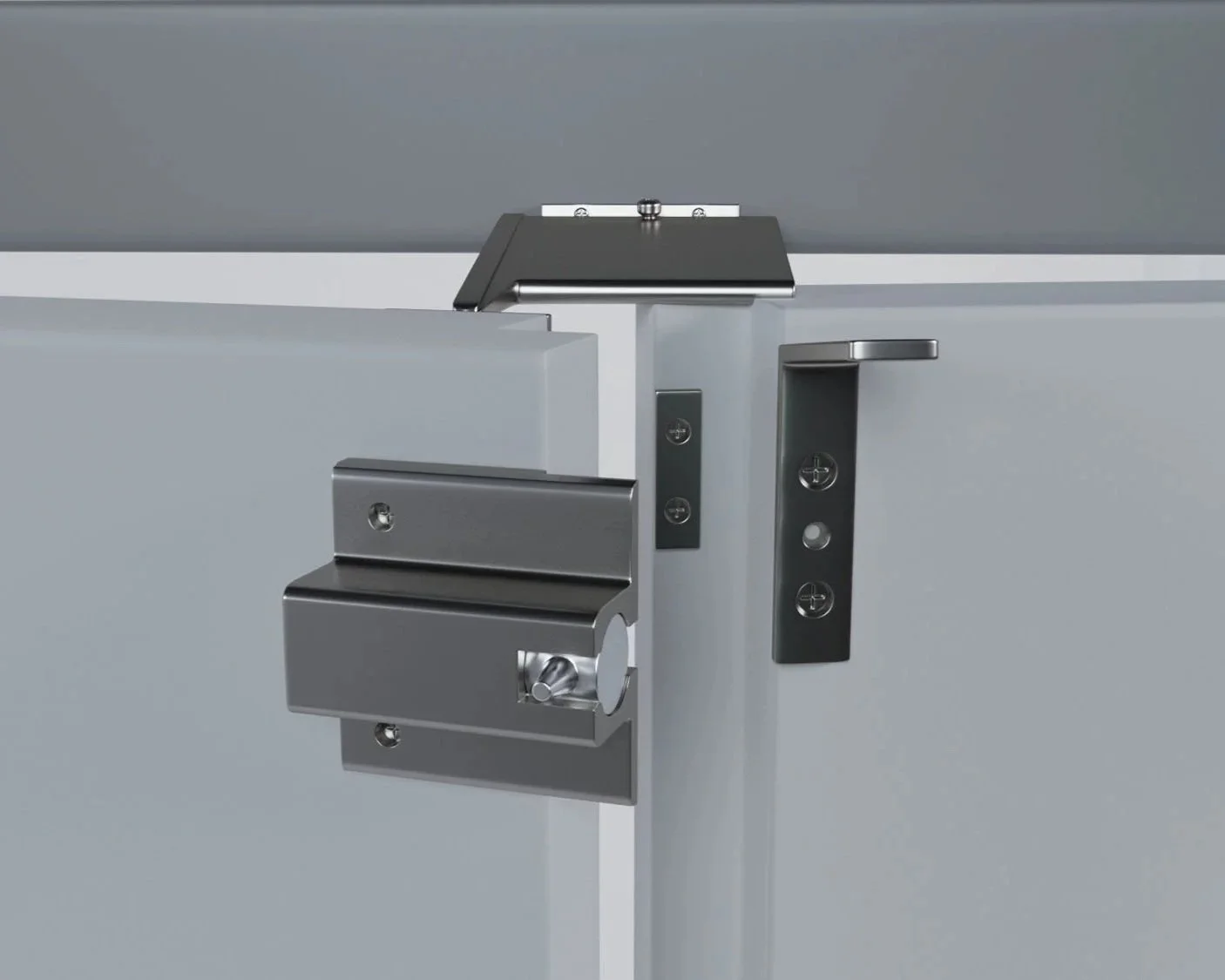

The MK2 door coordinator ensures that self-closing timber or metal double doors shut in the correct sequence, without fail.
If the doors do not shut in the correct sequence, this can create a gap between the two doors, allowing fire to spread. The product is therefore an integral product to ensure fire safety within all buildings.
