KEY FEATURES
SAFE & RELIABLE
Automatically seals timber fire doors in the event of a fire
CERTIFICATION
Safe, certified with proven performance in internationally recognised tests
FAST DELIVERY
Reliable stock availability with rapid dispatch
PRICING
Competitive, transparent pricing to manage costs effectively
Easy Ordering
Dedicated account manager for a personalised service
Material
304 Stainless Steel
Function
Heavy-Duty Use
Keyhole
Euro Profile 6mm
Fixing
4x20 mm screws
Finishes
Silver (Copy)
Antique Brass (Copy)
Polished Brass (Copy)
RAL Colours (Copy)
Satin Stainless Steel (Copy)
Sizes
EN2-4 adjustable power by position
$150
EN2-4 adjustable power by the spring
$500
EN2-5 Heavy duty option, adjustable power by spring
$800
TECHNICAL SPECIFICATION
-
CE
Certfire
-
S800
Heavy duty
EN2-5 by spring
Extruded body
Rack & Pinion mechanism with matching flat form armset.
-
Universal application – suitable for fitting on pull or push face of doors.
Common features:
Projecting arm
Parallel arm bracket included
Rack & pinion mechanism with matching flat form armset
Meets the opening force requirements of ADM and BS8300.(836mm minimum door width at EN3).
-
Antique Brass
Polished Brass
Silver
Satin Stainless Steel
RAL Colours
How it works

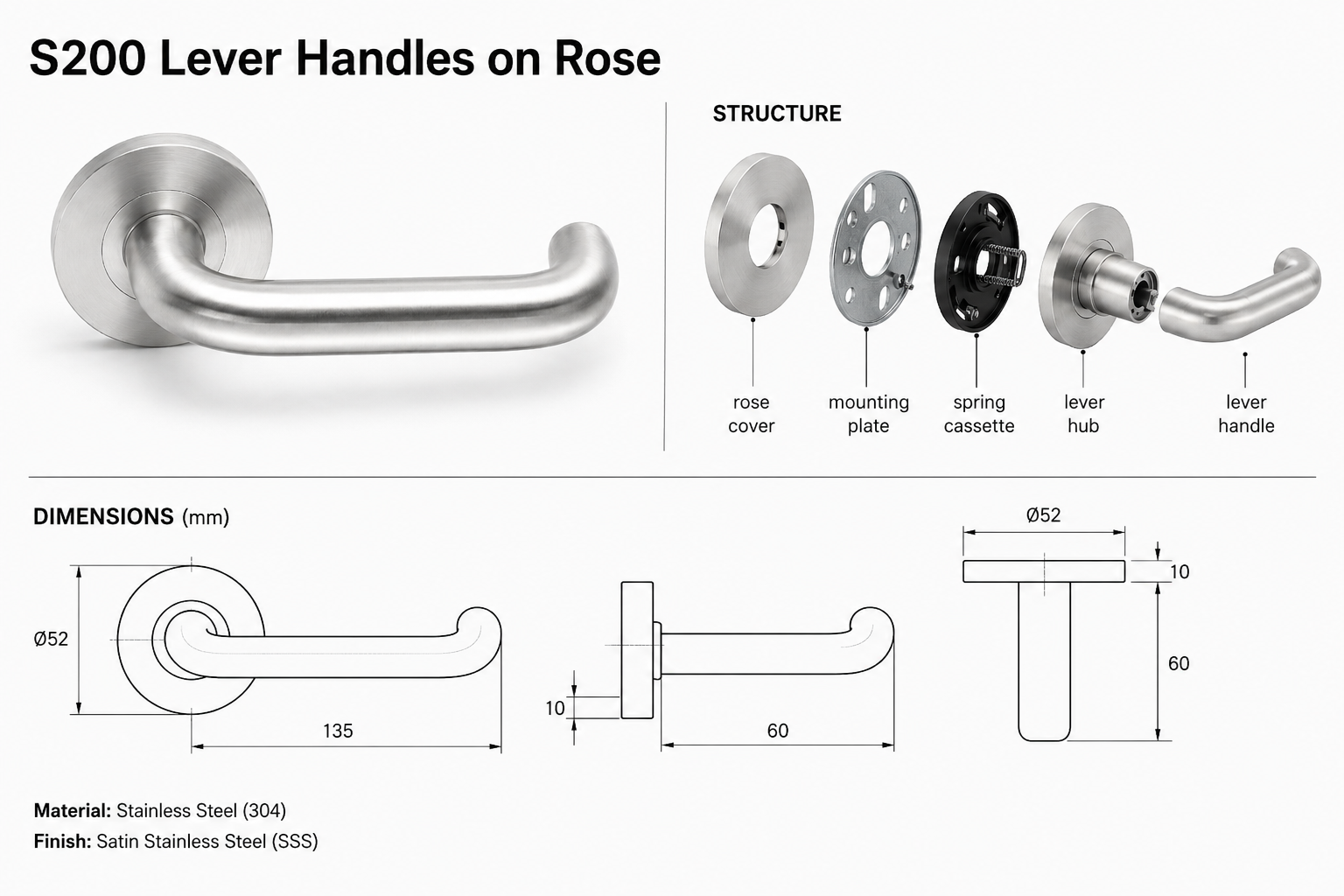

S200 LEVER HANDLE OPENS THE DOOR WHEN PRESSED DOWN
The S200 Lever Handle on Rose is fitted to the door with a spindle running through the lock or latch mechanism. When the handle is pressed down, the spindle turns and retracts the latch, allowing the door to open.
Once the handle is released, the sprung rose helps return the lever back to its normal position. The handle is designed with a 19mm diameter return-to-door style and is fixed on a slim 6mm thick rose.
It is made from grade 304 stainless steel and is suitable for commercial and industrial applications. The handle is designed for 40–64mm door thickness and uses an 8mm spindle with bolt-through fixing and wood screws for a firm installation.
