technical Specification
-
Tested door width 950mm, door weight 60kg
CE – Classification (Fig 1/Fig 61): 4 8 3 1* 1 3
Classification (Fig 6): 3 8 3 1* 1 3
-
Fire tested to BS EN 1634-1: suitable for 30, 60 and 120 minute timber fire doors
-
Mechanism
Threaded arm set
Fixings
Installation instructions
-
Internal light duty doors
Internal timber fire doors of light use
-
SPECIFICATION
| Product Ref | AR450-SE |
| Corrosion Resistance | 3 |
| Type | Mechanism Only |
| Door Type | Wooden Door |
| Tested Door Width | 950mm |
| Tested Door Weight | 60kg |
| Arm Application | Figure 1 and 61 |
| Mechanism Function | Fixed Power; Closing and Latching Speed |
| Mechanism Type | Rack and Pinion |
| Fixings | Timber Door |
| Power Size | 3 |
| Opening Angle | Maximum 180° Opening |
| Arm Type | Scissor Arm, Detachable Joint, Screw Adjustable |

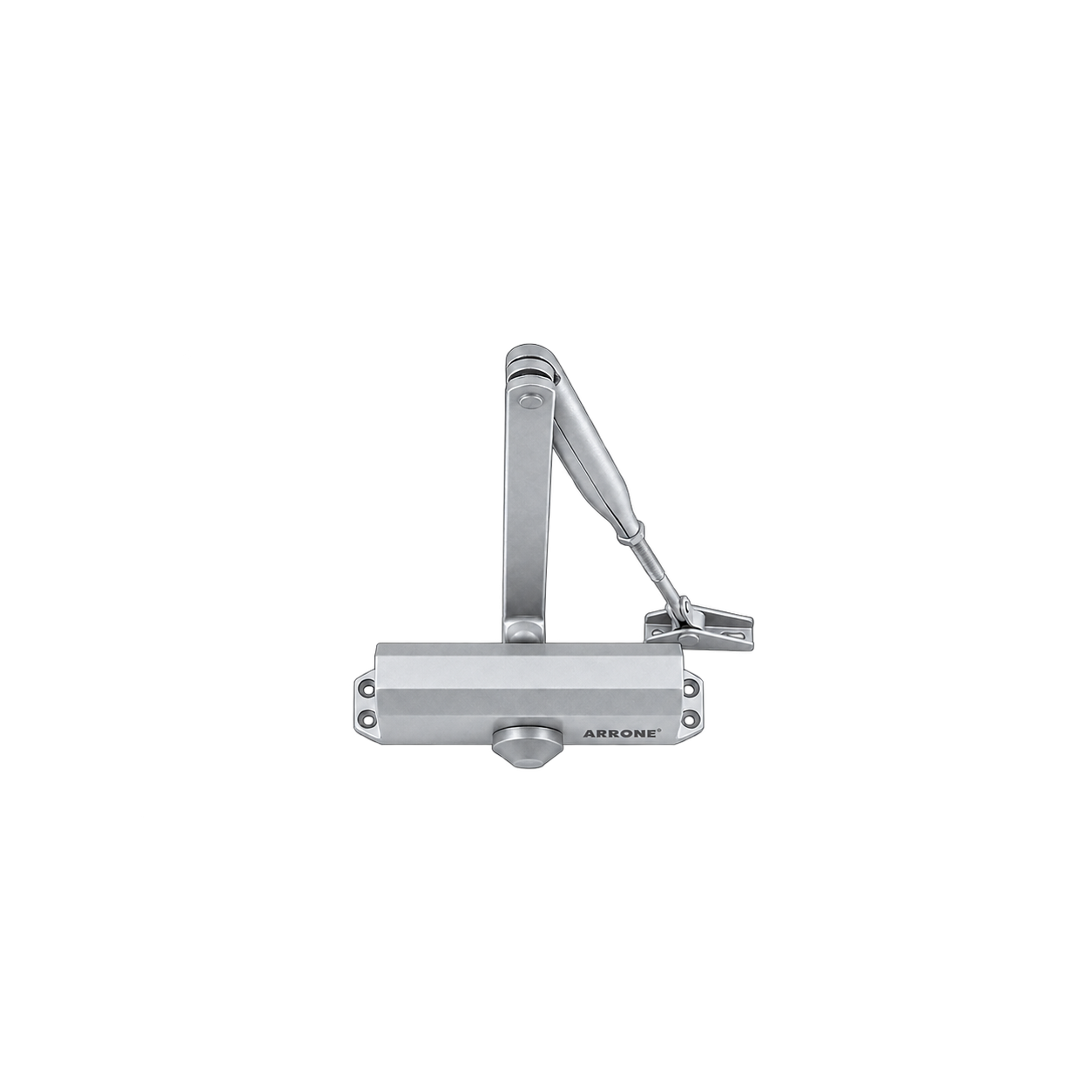

| Finish | SE Silver Enamel |
| Finish of the Cover | Silver |
| Arm Finish | SE Silver Enamel |
| Packing Unit | 1 |
| Outer Carton | 8 |
FEATURES
Overhead door-closing device
Power size: EN 3
Function: Closing and latching
Cover: None
Arm application: Figure 1/Figure 6, with bracket available separately, and Figure 61 fixing positions
Tested door width: 950mm
Tested door weight: 60kg
Classification Figure 1/Figure 61: 4 | 8 | 3 | 1* | 1 | 3
Classification Figure 6: 3 | 8 | 3 | 1* | 1 | 3
Suitable for 30, 60, and 120-minute timber fire doors
CERTIFICATION
Successfully type-tested for conformity with all requirements of BS EN 1154:1997
Tested door width 950mm, door weight 60kg
CE – Classification (Fig 1/Fig 61): 4 8 3 1* 1 3
Classification (Fig 6): 3 8 3 1* 1 3
Fire tested to BS EN 1634-1
