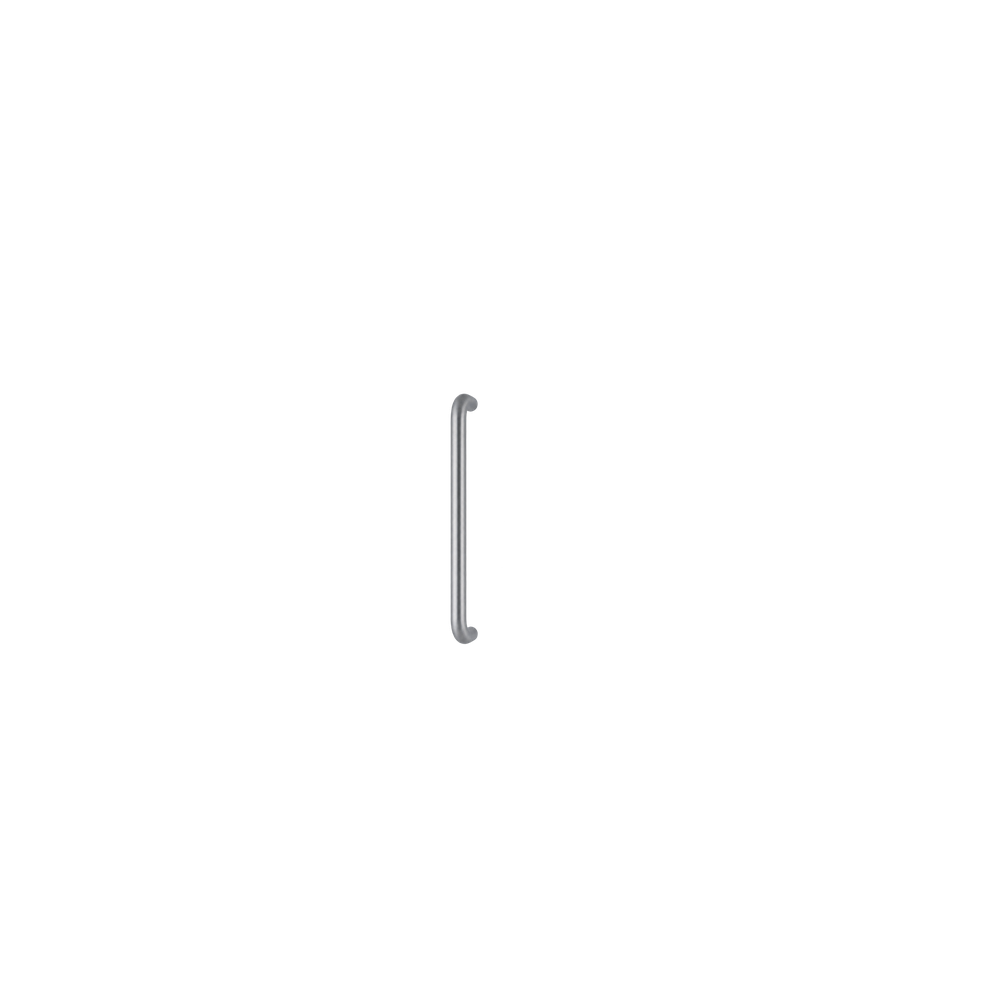

S300 SERIES PULL HANDLE

from £6.57

The S300 series pull handles are a range of grade 304 stainless steel pull handles in a slim 19mm diameter.

Lengths of 225mm and 300mm centres as standard, but other lengths are available.

Pull handles are supplied bolt through as standard but matching rose sets are available, they can also be supplied in back to back pairs.

Finish:

The S300 series pull handles are a range of grade 304 stainless steel pull handles in a slim 19mm diameter.

Lengths of 225mm and 300mm centres as standard, but other lengths are available.

Pull handles are supplied bolt through as standard but matching rose sets are available, they can also be supplied in back to back pairs.

Place an order

Place an order

technical Specification

FEATURES

  • Material: stainless steel grade 304

  • Handle diameter: 19mm

  • Fixing: bolt through type M8 machine screw

  • Door thickness: 35-54mm

  • Satisfies the dimension recommendations contained with BS 8300 for pull handles

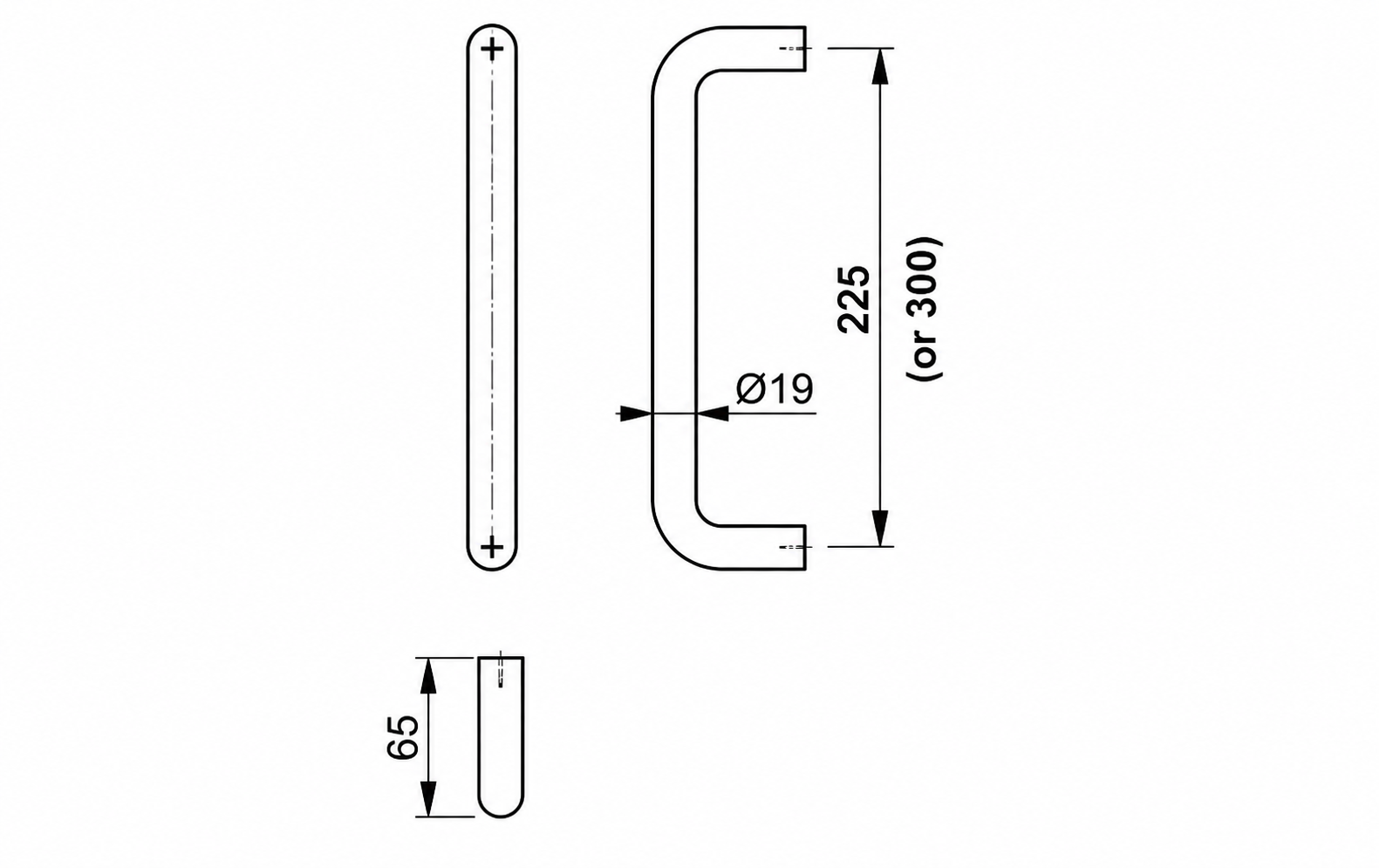

SPECIFICATION

Product Ref 225 x 19mm: S300.1.SSS
300 x 19mm: S300.2.SSS
Material Stainless steel: grade 304
Door thickness 35-24mm
Fixing distance 225mm
Diameter 19mm
Finish SSS Satin Stainless Steel

Finish options
